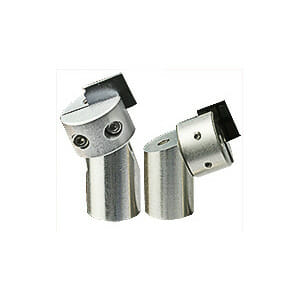

EM-Tec H77 EBSD 70° pre-tilt split mount sample holder for cross sections up to 8mm, M4

each

Description

The EM-Tec EBSD pre-tilt sample holders all include a 70° pre-tilt angle to facilitate EBSD analysis. With a 70° pre-tilt angle there is no need to tilt the SEM sample stage. Using 70° pre-tilted holders instead of tilting the SEM stage offer definite advantages:
– Correct EBSD angle when loading sample
– No stage drift in Z-direction
– Choice of 70° or 20° pre-tilt

The EM-Tec EBSD sample holder kits combine a number of available EM-Tec SEM sample holders: metallographic mount holders, geological slide holder, small vise type holders and S-Clip holders. These are combine with the EBSD 70° pre-tilt holder and a height extender if needed. The EM-Tec P70 and H70 pre-tilt EBSD holders include both 70° pre-tilt and -20° pre-tilt to enable EBSD measurements at 90° angle at the same sample. The EM-Tec EBSD 70° pre-tilt holders are available with pin and M4 threaded hole. The available EM-Tec EBSD sample holders and sample holder kits with 70° pre-tilt angle are:
– EM-Tec P70 / H70 EBSD holder for pin stubs and pin stub type sample holders, pin / M4
– EM-Tec P70M / H70M EBSD holder for Hitachi M4 stubs and M4 threaded holders, with pin / M4
– EM-Tec P71 / H71 EBSD sample holder kit for 25mm (1”) metallographic mounts, with pin / M4
– EM-Tec P72 / H72 EBSD sample holder kit for 30mm (1-1/4”) metallographic mounts, with pin / M4
– EM-Tec P73 / H73 EBSD sample holder kit for up to 48x28mm geological slides, with pin /M4
– EM-Tec P74 / H74 EBSD sample holder kit for FIB lamellas, with pin / M4
– EM-Tec P75 / H75 EBSD S-clip sample holder kit for Si chips & thin samples, with pin / M4
– EM-Tec P76 / H76 EBSD mini vise clamp holder for cross-section samples up to 4mm, with pin / M4
– EM-Tec P77 / H77 EBSD mini split mount vise holder for cross-section samples up to 8mm, with pin / M4
– EM-Tec P78 / H78 EBSD vise clamp holder for samples up to 16mm, with pin / M4
– EM-Tec TE1 t-EBSD holder for a single TEM / FIB Lift-out grid with pin / M4
– EM-Tec TE3 t-EBSD holder for three TEM / FIB Lift-out grids with pin / M4

The EM-Tec EBSD sample holder kits combine a number of available EM-Tec holders: metallographic mount holders or geological slide holders with the EBSD 70° pre-tilt holder and a height extender for the 30mm/1-1/4” EBSD sample holder to provide clearance. The height extender can be easily removed if the stage adapter on the SEM stage does not require the use of height extender. The EM-Tec EBSD 70° pre-tilt holders are available with pin and M4 threaded hole.
Using a stub adapter for JEOL SEMs is only advised if there is enough height clearance or if the JEOL SEM has been converted to use pin stubs.
