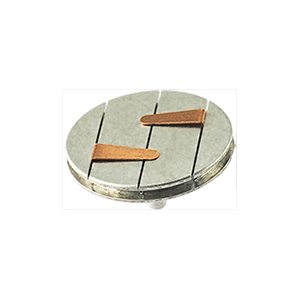

EM-Tec LPS25 Low Profile S-Clip SEM sample holder, two standard clips on a Ø25.4mm pin stub

each

Description

The EM-Tec Low Profile S-Clip SEM sample holders have been developed to allow for very short working distance and high tilt of thin samples. The Low-Profile S-Clip holders can be used to clamp thin samples, such as Silicon chips, up to 1mm thickness. The EM-Tec Low Profile S-Clips are positioned in the narrow precision slots which are cut in the specimen mounts; the clips can be moved sideways for optimum positioning. The EM-Tec Low Profile S-Clips are less 0.3mm thick which enables bringing the sample within 1mm of the polepiece. The EM-Tec Low Profile S-Clips are made from non-magnetic phosphor bronze and can be easily modified to accommodate your samples. The currently available EM-Tec Low Profile S-Clip SEM sample holders are:
– EM-Tec LPS12 with one short Low Profile S-Clip on a Ø12.7mm standard pin stub
– EM-Tec LPS19 with two short Low Profile S-Clips on a Ø19 mm pin stub
– EM-Tec LPS25 with two standard Low Profile S-Clips on a Ø25.4mm pin stub
The EM-Tec Low Profile S-Clip SEM sample holders are compatible with SEM, FESEM, SEM/FIB, Dualbeam and Crossbeam systems from Tescan, Thermo, FEI, Philips and Zeiss. For JEOL and Hitachi systems pin stub adapters should be used.
