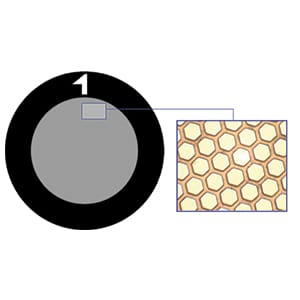

Grids / grilles 1000 hexagonal Mesh ( Cu, Ni…) – High Mesh Values – Gilder

3.05mm diameter, see chart for thickness
Material: Copper (Cu), Copper-Rhodium (Cu-Rh), Nickel (Ni), Gold (Au), Molybdenum (Mo)

Available Options:

Description

A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny 3.05mm diameter, 0.7 mil thickness Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP) side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.



High Mesh Values
3.05mm diameter, 0.7 mil (18µm) thickness
Mesh Diameter: 2mm
Material: Copper (Cu), Nickel (Ni), Gold (Au)

High Mesh Values



Type Cat# Packed Pitch (µm) Hole (µm) Bar (µm)
G1000HH hexagonal Mesh DG1000HH-Cu 25/vial 25 ~19 ~6
DG1000HH-Ni 25/vial 25 ~19 ~6
DG1000HH-Au 25/vial 25 ~19 ~6
G1500HH hexagonal Mesh DG1500HH-Cu 15/vial 16.5 ~10.5 ~6
DG1500HH-Ni 15/vial 16.5 ~10.5 ~6
DG1500HH-Au 15/vial 16.5 ~10.5 ~6
G2000HA Circular Mesh DG2000HA-Cu 10/vial 12.5 ~6.5 ~6
DG2000HA-Ni 10/vial 12.5 ~6.5 ~6
DG2000HA-Au 10/vial 12.5 ~6.5 ~6



La liste est non exhaustive.
N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.



Additional information

Cat#

Cu, Ni, Au
