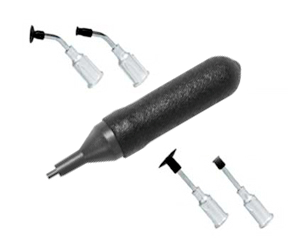

The Handi-Vac® Squeeze Bulb Kit is a versatile, cost-effective vacuum tool system that should be on every tool-bench.
– (1) 1/8″ vacuum cup on bent probe
– (1) 1/4″ vacuum cup on bent probe
– (1) 1/8″ vacuum cup on straight probe
– (1) 3/8″ vacuum cup on straight probe
– SMT parts
– Metal parts
– Plastic parts
– Smooth, nonporous-surfaces
This tool can be used with larger rubber vacuum cups ranging in size from 3/32″ (2.38mm) to 3/4″ (19.05mm) in diameter. Use the larger cups to pick up larger and heavier parts by placing them directly on the Handi-Vac tip without using a probe.
1- Select a tip with a rubber vacuum cup slightly smaller than the part you want to pickup. Place it on a probe. Put the probe firmy on the tip of the Handi-Vac tool. Make sure the rubber vacuum tip is free of dust.
2- Gently squeeze the Handi-Vac bulb and place the soft suction cup squarely on the part, then relax your squeeze. The part is now firmly gripped.
3- Move the part to where you need it and a give a second squeeze of the bulb to release it.
