Light Head Hanger

Description

How does this work?
The extension cables plug into the gooseneck lamp base and can bring power to either one or two light heads.

Single light head and cable	Two light heads with dual cable

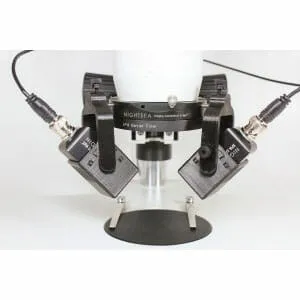

The Light Head Hangers mount to the end of any of the thumbscrews on the SFA adapter ring. They are available in long and short pivot arm versions for use with long and short working distance microscopes.
– Long working distance (LWD) – 6.5 cm (2.5 in.) and greater
– Short working distance (SWD) – 6.3 – 4.6 cm. (2.5 – 1.8 in.)

LWD and SWD Light Head Hangers

LWD Light Head Hanger at highest position	LWD Light Head Hanger at lowest position
SWD Light Head Hanger at highest position	SWD Light Head Hanger at lowest position

What is the benefit?

There are two main potential benefits with this new accessory:

Increase excitation intensity without buying a second lamp base
Until now if you wanted to increase the fluorescence excitation intensity of the SFA system you would need to buy a second light head and lamp base. This would take up additional real estate on your laboratory bench. With the Light Head Hanger system you can power two light heads from one base and mount them both directly to the NIGHTSEA adapter ring.

“We had some issue detecting red fluorescent proteins with some of our weaker transgenic zebrafish lines, but by shining two LED lights onto the same embryo, most of our weakest GFP and mCherry transgenic lines can now be detected. One light head was fine for reasonably bright specimens, and with two lights, the fluorescence is nearly the same as traditional stereomicroscopes priced $15-20K.”

Reduce the chance of accidentally bumping the light
Taking the light head off the gooseneck and mounting it directly to our microscope adapter reduces the chance of the light head being bumped so that it is not illuminating the subject on the microscope stage to best effect. This might be especially valuable if you are using the system for outreach demonstrations and multiple people will be working around the microscope.

What are the options, part numbers and pricing?

Abbreviations: HK – Hanger Kit, DHK – Dual Hanger Kit, L or LWD – long working distance, S or SWD – short working distance

Hanger Kit for single light head
– Includes single Light Head Cable and one Light Head Hanger
– SFA-HK-L – Single hanger kit, LWD
– SFA-HK-S – Single hanger kit, SWD

Hanger Kit for dual light heads
– Includes Dual Light Head Cable and two Light Head Hangers
– SFA-DHK-L – Dual hanger kit, LWD
– SFA-DHK-S – Dual hanger kit, SWD

Light head hanger
– SFA-LHH-L – LWD arms
– SFA-LHH-S – SWD arms

Dual light power cable
– SFA-DLHC

Single light power cable
– SFA-LHC

Note that if you are ordering a Dual kit to power two light heads at once for increased intensity you will need to have two light heads of the same color. Above prices do not include the cost of an additional light head.
