SEM Finder Grids type SEMF2 ( Cu, Ni, Au…)

Available Options:

Description

SEM Finder Grids
These two new SEM grids are designed to aid in the identification and localization of SEM specimens when placed on standard SEM stubs.
The SEMF2 allows for easy characterization and analysis of particles and suspensions.
The SEMF3 uses an alpha-numeric index, allowing up to 25 predetermined specimens to be fixed and then located in a SEM.

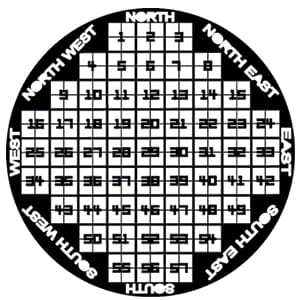

Type SEMF2
The larger cells are identified using numbers from 1 – 57. Each large cell is sub-divided into 4, making a total of 228 identifiable cells by reference to their number and geographical location.





Overall Diameter 10 mm
Overall Thickness ~ 50 µm
Material Copper, Nickel or Gold



D80102-Cu SEMF2,Copper 10/vial
D80102-Ni SEMF2, Nickel 10/vial
D80102-Au SEMF2, Gold 5/vial

N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.



Additional information

Cat#

Cu, Ni, Au
