Thin Bar Grids / grilles ( Cu, Ni) – Variable Mesh – Gilder

3.05mm diameter, see chart for thickness
Material: Copper (Cu), Copper-Rhodium (Cu-Rh), Nickel (Ni), Gold (Au), Molybdenum (Mo)

Available Options:

Description

A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny 3.05mm diameter, 0.7 mil thickness Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP) side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.



3.05 diameter, 0.8 mil thickness
Material: Copper(Cu), Nickel(Ni), Gold(Au)
Thin Bar Grids have been developed using a new technology to produce ultra-fine grids with thinner cross bars than regular grids. The result is equally firm specimen support, but with 40% more open area for viewing maximum specimen surface area.



Mesh Cat# Packed Pitch (µm) Hole (µm) Bar (µm)
200 DT200-Cu 100/vial 125 113 12
DT200-Ni 100/vial 125 113 12
DT200-Au 25/vial 125 113 12
300 DT300-Cu 100/vial 83 73 10
DT300-Ni 100/vial 83 73 10
DT300-Au 25/vial 83 73 10
400 DT400-Cu 100/vial 62 54 8
DT400-Ni 100/vial 62 54 8
DT400-Au 25/vial 62 54 8
1000 DT1000-Cu 25/vial 25 19 6
DT1000-Ni 25/vial 25 19 6

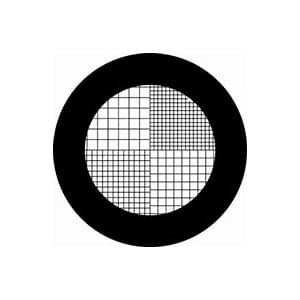

Variable Mesh TVM-Cu 100/vial Combined : 150, 200, 300, 400 mesh

Same as above

TVM-Ni 100/vial

N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.
