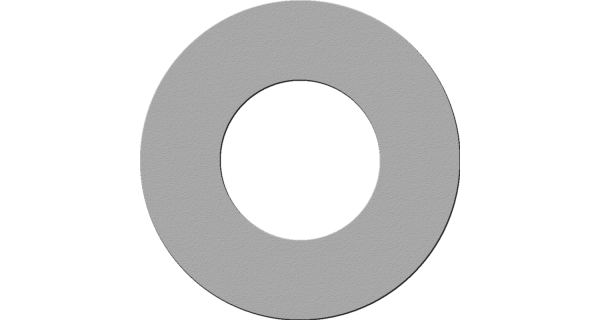

Carbon Single Hole New Thickness Ranges (NICKEL)

A thin film of pure carbon deposited on one side of the grid. The thickness range is as follows: Standard: Approx. 5-6nm Ultra-Thin (UL): 3-4nm Thick (TH): 10nm Extra Thick (ET): 20-30nm Quantity : 50/box

Available Options:


Support Film on Grids Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options: – Molybdenum grids in place of Au, Cu, or Ni – As Silicone free – With ultra-thin thickness (thickness can be requested) – Extra thick thickness NOTE: All of our film is laid on the shiny side of the grid. How do Nickel and Copper Grids React with Periodic Acid? Periodic Acid + Ni Ni-Periodate + H2 Periodic Acid + Cu Cu-Periodate + H2 In this case you should use Gold Grids. Technical Tips : Picking up of_carbon_film

Additional information


75 microns, 100 microns, 150 microns, 200 microns, 300 microns, 400 microns, 600 microns, 800 microns, 1000 microns, 1500 microns


Ultra-thin, Thick, Extra-thick
