Grids / grilles 300 Mesh ( Cu, Ni…) – Finder – Gilder

3.05mm diameter, see chart for thickness
Material: Copper (Cu), Copper-Rhodium (Cu-Rh), Nickel (Ni), Gold (Au), Molybdenum (Mo)

REF: DG300F1 Categories: , , , Tag:

Available Options:

Description

A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny 3.05mm diameter, 0.7 mil thickness Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP) side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.



Gilder Finder Grids
3.05mm diameter, 0.7 mil (18µm) thickness
Material: Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP)

Gilder Finder Grids in nickel, copper, gold, and palladium

⁴ Thick bars dividing regions into 6 thin bar areas, which are identified by a numeric system.
⁵ Thick bars dividing regions into 9 thin bar areas, which are identified by alphabetical letters located in the center of the grid.
⁶ Each of the 322 grids squares, can be identified by reference to its unique combination of base 2 binary number and alphabet symbol (A-T). 0 is a short rounded solid pillar and 1 is a longer rounded solid pillar.

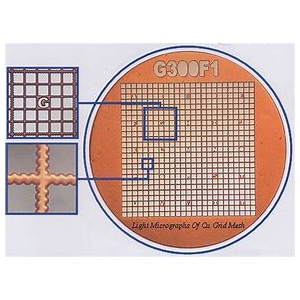

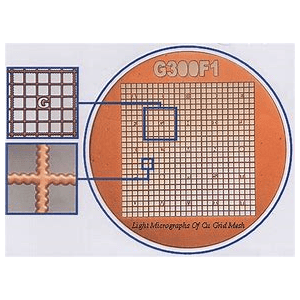

⁷ The block of 625 (25×25) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 25 cells has a central alphabet letter from A to Y for identification purposes.
⁸ The block of 1152 (32×36) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 36 (6×6) cells has a central number from 1 to 32 for identification purposes..



Mesh Cat# Packed Pitch (µm) Hole (µm) Bar (µm)
200 mesh⁴ DG200F1-Cu 100/vial 125 90-100 35-12
DG200F1-Ni 100/vial 125 90-100 35-12
DG200F1-CP 100/vial 125 90-100 35-12
DG200F1-Au 50/vial 125 90-100 35-12
200 mesh⁵ DG200F2-Cu 100/vial 125 106 25-12
DG200F2-Ni 100/vial 125 106 25-12
DG200F2-CP 100/vial 125 106 25-12
DG200F2-Au 50/vial 125 106 25-12
200 mesh⁶  DG200HF3-Cu 25/vial 125
DG200HF3-Ni 25/vial 125
300 mesh⁷ DG300F1-Cu 100/vial 83 63 20
DG300F1-Ni 100/vial 83 63 20
DG300F1-Au 50/vial 83 63 20
400 mesh⁸ DG400F1-Cu 100/vial 62 47 15
DG400F1-Ni 100/vial 62 47 15
DG400F1-Au 50/vial 62 47 15



La liste est non exhaustive.
N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.



Additional information

Cat#

F1-Cu, F1-Ni, F1-Au
