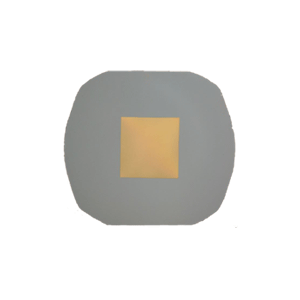

NEW Silicon Dioxide G-FLAT™ TEM Windows ( Single 1000 micron window)

REF: SO100-GFLAT100 Categories: , ,


20 nm and 40 nm




Silicon Oxide G-FLAT™ TEM Windows
– 100 micron thick frame, fits 3 mm sample holders
– SiMPore’s unique G-Flat™ wrinkle-free 100nm thick Silicon Oxide film
– Dimensions: Single 1000 micron window
– Non-Porous

SiMPore’s G-FLAT™ silicon oxide films are created by a proprietary process that uniquely results in flat, suspended silicon oxide membranes. These membranes are ideally suited for biological imaging studies, with a glass-like hydrophilic surface. These TEM Windows are essentially micro-scale glass cover slips.

100% Satisfaction Guaranteed

TEM Windows handling Instructions

Explore how the Technical Properties Technical Properties  of SiMPore’s Pure Silicon windows compare to other thin films
For examples of how these TEM windows can be used, please see Featured Publications

Competitively Priced: state of the art manufacturing processes and an expert engineering team allow us to offer Silicon Dioxide solutions at competitive prices
Plasma Cleanable: Silicon dioxide window grids can be vigorously plasma cleaned to remove organic contamination, unlike carbon grids
Increased Uniformity: reduced field-to-field variability
Tolerates temperatures >1000C: supports use in environmental TEMs where dynamic processes are observed at high températures
Withstands harsh deposition & chemical conditions: provides an ideal balance of imaging resolution and mechanical strength
Incorporates stoichiometric silicon dioxide: offers the ability to analyze for nitrogen by EDX techniques
