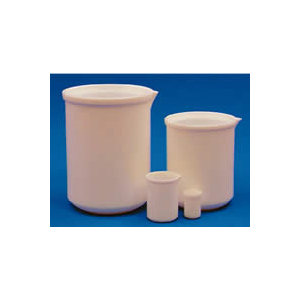

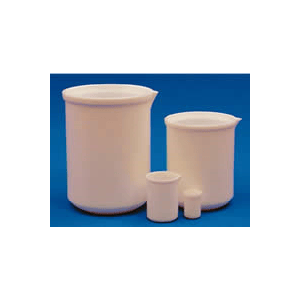

PTFE Beakers

Is statically molded from virgin “PTFE” and machine finished to give a smooth surface for ease of cleaning and to eliminate contamination. Supplied with a pouring spout and they are virtually immune to chemical attack. Working temperature range is from cryogenic to 260°C (500°F). Ideal for use in wafer etching.

All other sizes: 600 ml; 1000 ml, 2000 ml; 5000 ml are available on request.

Available Options:

Description

# Cap Capacity Height Diameter
D60936 D60936-C 1 ml 18 mm 10 mm
D60938 D60938-C 5 ml 26 mm 17 mm
D60940 D60940-C 10 ml 33 mm 21 mm
D60941 D60941-C 25 ml 47 mm 28 mm
D60942 D60942-C 50 ml 58 mm 38 mm
D60944 D60944-C 100 ml 70 mm 48 mm
D60946 D60946-C 250 ml 95 mm 60 mm
D60947 D60947-C 400 ml 106 mm 73 mm
D60948 D60948-C 500 ml 125 mm 73 mm
D60949-06 D60949-06C 600 ml 127 mm 80 mm
D60949-10 D60949-10C 1000 ml 155 mm 92 mm
D60949-20 D60949-20C 2000 ml 200 mm 114 mm

Additional information

Unit

each
