Sampling Tools – Core Sampling Tool (punch)

An all new revolutionary multi-purpose sampling tool, designed with retractable cutting cannulla for easy operation. EMS-Core consists of a razor sharp stainless steel cutting tip, designed to cut, retrieve and store cored samples from source materials such as skin, tissue, gels, paper, cloth, leaves, paint chips, films or other thin, soft substrates you can choose different diameters of cannulas according to your needs (0,35 to 8 mm).







Available Options:

Description

EMS-Core is an all new revolutionary multi-purpose sampling tool, designed with retractable cutting cannulla for easy operation. Efficient, safe, fast and precise, the EMS-Core consists of a razor sharp stainless steel cutting tip, designed to cut, retrieve and store cored samples from source materials such as skin, tissue, gels, paper, cloth, leaves, paint chips, films or other thin, soft substrates. The EMS-Core is well known and recommended as the special DNA sampling tool and is ideal for forensic and laboratory sampling purposes. Each EMS-Core is individually packaged and ethylene oxide sterilized.

Features

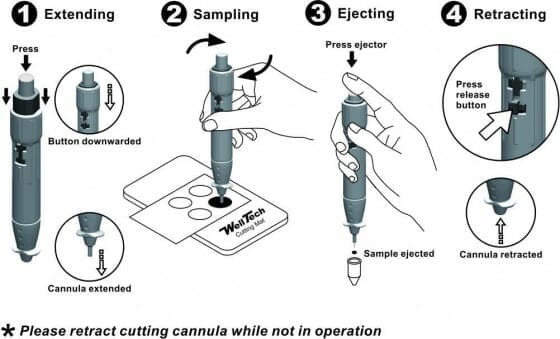

  • Pen-like Actuator mechanically extends the cannulla from the protective casing
  • Self-contained Plunger effortlessly ejects the tissue sample out of the tip

Specifications

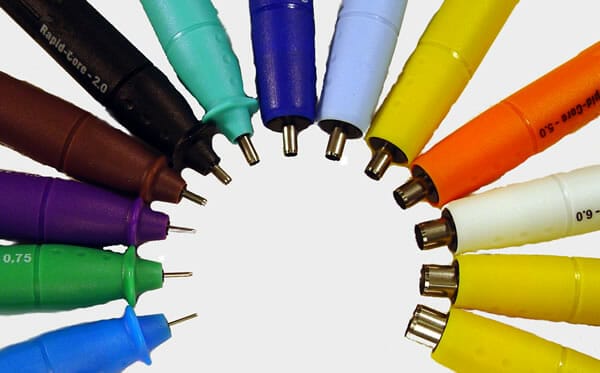

Sizes: 0.35, 0.5, 0.75, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 7.0 & 8.0mm
Material: PP (plastic) – body, 304 stainless steel – cutting cannula (tip)
Packaging: Each piece in an individual pouch.
Sterilization: EO (Ethylene Oxide)

Do not hesitate to contact us if you want additional information or another product.

Ordering Information

Cat.# (Ref.) Type (mm) ID (mm) OD (mm) Wall thickness (mm) Qty Price
69039-03 .35 0.33 0.63 0.15 each
69039-05 0.5 0.50 0.80 0.15 each
69039-07 0.75 0.77 1.07 0.15 each
69039-10 1.0 0.96 1.26 0.15 each
69039-12 1.2 1.2 1.5 0.15 each
69039-15 1.5 1.5 1.9 0.20 each
69039-20 2.0 2.0 2.4 0.20 each
69039-25 2.5 2.5 2.9 0.20 each
69039-30 3.0 3.0 3.4 0.20 each
69039-35 3.5 3.5 3.9 0.20 each
69039-40 4.0 4.0 4.4 0.20 each
69039-50 5.0 5.0 5.5 0.25 each
69039-60 6.0 6.0 6.5 0.25 each
69039-70 7.0 7.0 7.5 0.25 each
69039-80 8.0 8.0 8.5 0.25 each





















Technical Data Sheet: Core Operation Guide
