Easy-Models ™

A newly designed mold which is convenient and offers better embedments. This tray-and-mold in one unit offers a unique specimen block that no other mold can.

Available Options:

Description

Features

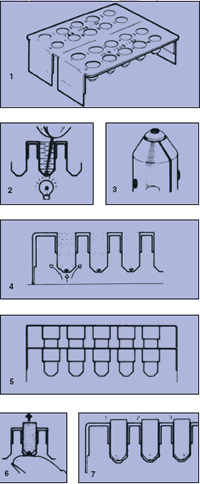

Trays-and-molds are self standing. There is no need for a holding tray
Easy Orientation of Specimens.
The tip of each mold is only 0.3mm thick and is designed to be transparent. This facilitates the orientation of your specimen prior to polymerization
They form a Universal Block.
Many microscopists have to embed large specimens. The Easy Mold tip forms a flat block face which is wide enough for large specimens. This wide surface helps to prevent air bubbles being trapped around the specimen during polymerization. In addition, a positive guide form on the block offers an accurate position for clamping
Free Airflow for Even Polymerization.
Easy Mold trays raise the molds away from the surface of the oven, allowing air of a constant temperature to circulate freely and evenly around the specimen tip during the hardening process
Sealing of Capsules
If you are using Acrylate or other volatile embedding mediums (LR White, GMA, HPMA), the molds can be sealed by placing another Easy Mold on the top, and by applying a little pressure you can seal the capsule completely
Easy to Remove the Polymerized Block.
Due to the softness of the bottom of the mold, to release the block simply push the bottom of the mold with your thumb and your block will just pop out. There is no need for razor blades or a Capsule Press!
Convenient Storage and Identification of Sectioned Blocks
Each cavity on the Easy Mold is numbered, and data can be written on the trays. Used Easy Molds can be used for the storage of blocks which have already been sectioned, and filed away by stacking one tray on top of another. There is no need for block storage boxes
Technical Specifications
Each tray contains 2×10 block molds and measures 87x66mm.
They are available in two sizes:

Size 5.6mm diameter, which corresponds to gelatin and BEEM® capsules size 3, and forms a block face of 1.6 mm
Size 8mm diameter, which corresponds to gelatin and BEEM® capsule size “00” and forms a block face of 3 mm

Additional information

Unit

5 trays, 50 trays, 25 trays
