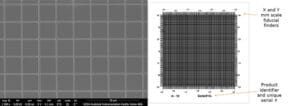

EM-Tec M-10 with a 10µm pitch grid pattern is useful for calibration or image distortion… Show more (+) EM-Tec M-10 with a 10µm pitch grid pattern is useful for calibration or image distortion assessments in the 100x to 1000x magnification range. Pattern size is 3x3mm with lines directly etched in a conductive ultra-flat silicon substrate. Lines are 300nm deep with a width of 300nm for 10µm lines and 400nm for 100µm lines. Alternatively, small samples can be placed direction on the grid pattern for immediate calibration or integrated calibration in the image. This standard is NIST traceable; example of wafer level certificate of traceability for the Em-Tec M-10 grid pattern calibration standard.
Intended for SEM, table top SEM, FIB, Auger, SIMS and reflected light microscopy. Show less (-) |
 |

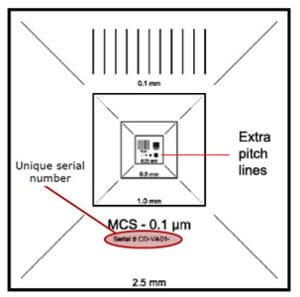

The EM-Tec MCS-0.1 calibration standard has been developed to accurately calibrate SEM, FESEM, FIB… Show more (+) The EM-Tec MCS-0.1 calibration standard has been developed to accurately calibrate SEM, FESEM, FIB, Auger, SIMS and reflected light microscope systems. Suitable for magnifications from 10x to 200,000x. Bright chromium deposited features on ultra-flat conductive silicon for calibration down to 2.5µm and gold over chromium for 1µm to 100nm calibration features. The metal lines on silicon exhibit excellent signal with high contrast. The feature sizes for the MCS-0.1 are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm, 1µm, 500nm, 250nm and 100nm. The 31-T32000 EM-Tec MCS-0.1TR is NIST traceable on the wafer level against a NIST calibrated standard. Offered unmounted or mounted on the most popular SEM stubs. Good alternative for the discontinued SIRA calibration standard.
Example of wafer level certificate of traceability for the EM-Tec MCS-0.1TR magnification calibration standard, 2.5mm to 100nm. Show less (-) |
 |
The EM-Tec MCS-0.1-XY calibration standard has been developed to most accurately calibrate SEM, FESEM… Show more (+) The EM-Tec MCS-0.1-XY calibration standard has been developed to most accurately calibrate SEM, FESEM, FIB, Auger and SIMS systems. Suitable for magnifications from 10x to 200,000x. Brigth chromium deposited features on ultra-flat conductive silicon for calibration down to 2.5µm and gold over chromium for 1µm to 100nm calibration features in X and Y direction. The metal lines on silicon exhibit excellent signal with high contrast. The feature sizes for the MCS-0.1-XY are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm, 1µm, 500nm, 250nm and 100nm in X and Y direction. The 31-C32000 EM-Tec MCS-0.1CF-XY is individually certified utilizing a NIST calibrated standard. Offered unmounted or mounted on the most popular SEM stubs. Excellent alternative for the discontinued SIRA calibration standard with easier to use compatible feature sizes. Show less (-) |
|
The EM-Tec MCS-0.1 calibration standard has been developed to accurately calibrate SEM, FESEM, FIB… Show more (+) The EM-Tec MCS-0.1 calibration standard has been developed to accurately calibrate SEM, FESEM, FIB, Auger, SIMS and reflected light microscope systems. Suitable for magnifications from 10x to 200,000x. Bright chromium deposited features on ultra-flat conductive silicon for calibration down to 2.5µm and gold over chromium for 1µm to 100nm calibration features. The metal lines on silicon exhibit excellent signal with high contrast. The feature sizes for the MCS-0.1 are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm, 1µm, 500nm, 250nm and 100nm. The 31-T32000 EM-Tec MCS-0.1TR is NIST traceable on the wafer level against a NIST calibrated standard. Offered unmounted or mounted on the most popular SEM stubs. Good alternative for the discontinued SIRA calibration standard.
Example of wafer level certificate of traceability for the EM-Tec MCS-0.1TR magnification calibration standard, 2.5mm to 100nm. Show less (-) |
|
The EM-Tec MCS-0.1-XY calibration standard has been developed to accurately calibrate SEM, FESEM, FIB… Show more (+) The EM-Tec MCS-0.1-XY calibration standard has been developed to accurately calibrate SEM, FESEM, FIB, Auger and SIMS systems. Suitable for magnifications from 10x to 200,000x. Bright chromium deposited features on ultra-flat conductive silicon for calibration down to 2.5µm and gold over chromium for 1µm to 100nm calibration features. The metal lines on silicon exhibit excellent signal with high contrast. The feature sizes for the MCS-0.1-XY are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm, 1µm, 500nm, 250nm and 100nm in both X and Y direction. The 31-T32040 EM-Tec MCS-0.1TR-XY is NIST traceable on the wafer level against a NIST calibrated standard. Offered unmounted or mounted on the most popular SEM stubs. Good alternative for the discontinued SIRA calibration standard. Show less (-) |
 |

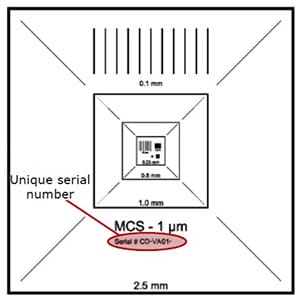

The EM-Tec MCS-1 calibration standard has been developed to accurately calibrate table top SEM, reflected… Show more (+) The EM-Tec MCS-1 calibration standard has been developed to accurately calibrate table top SEM, reflected light microscopes, compact SEMs and the low to medium magnification range of standard SEMs. Suitable for magnifications from 10x to 20,000x. Bright chromium deposited features on ultra-flat conductive silicon. The feature sizes for the MCS-1 are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm and 1µm.
The 31-C31000 EM-Tec MCS-1CF is individually certified utilizing a NIST measured calibration standard. Offered unmounted or mounted on the most popular SEM stubs.
Example of individual certificate of calibration for the EM-Tec MCS-1CF certified magnification calibration standard, 2.5mm to 1µm. Show less (-) |
|
The EM-Tec MCS-1-XY calibration standard has been developed to accurately calibrate table top SEM, reflected… Show more (+) The EM-Tec MCS-1-XY calibration standard has been developed to accurately calibrate table top SEM, reflected light microscopes, compact SEMs and the low to medium magnification range of standard SEMs. Suitable for magnifications from 10x to 20,000x. Bright chromium deposited features on ultra-flat conductive silicon. The feature sizes for the MCS-1-XY are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm and 1µm in both X and Y direction.
The 31-C31000 EM-Tec MCS-1CF-XY is individually certified utilizing a NIST measured calibration standard. Offered unmounted or mounted on the most popular SEM stubs. Show less (-) |
|
he EM-Tec MCS-1 calibration standard has been developed to accurately calibrate table top SEM, reflected… Show more (+) he EM-Tec MCS-1 calibration standard has been developed to accurately calibrate table top SEM, reflected light microscopes, compact SEMs and the low to medium magnification range of standard SEMs. Suitable for magnifications from 10x to 20,000x. Bright chromium deposited features on ultra-flat conductive silicon. The feature sizes for the MCS-1 are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm and 1µm.
The 31-T31000 EM-Tec MCS-1TR is traceable on the wafer level against a NIST measured calibration standard. Offered unmounted or mounted on the most popular SEM stubs.
Example of wafer level certificate of traceability for the EM-Tec MCS-1TR magnification calibration standard, 2.5mm to 1µm. Show less (-) |
|
The EM-Tec MCS-1-XY calibration standard has been developed to accurately calibrate table top SEM, reflected… Show more (+) The EM-Tec MCS-1-XY calibration standard has been developed to accurately calibrate table top SEM, reflected light microscopes, compact SEMs and the low to medium magnification range of standard SEMs. Suitable for magnifications from 10x to 20,000x. Bright chromium deposited features on ultra-flat conductive silicon. The feature sizes for the MCS-1-XY are:
2.5mm, 1.0mm, 0.5mm, 250µm, 100µm, 10µm, 5µm, 2.5µm and 1µm in X and Y direction.
The 31-T31000 EM-Tec MCS-1TR-XY is traceable on the wafer level against a NIST measured calibration standard. Offered unmounted or mounted on the most popular SEM stubs. Show less (-) |
 |

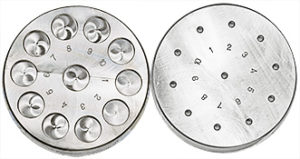

Solid, round and stabile EM-Tec PS22 preparation station for all types and sizes of SEM… Show more (+) Solid, round and stabile EM-Tec PS22 preparation station for all types and sizes of SEM pin stubs and Hitachi 15mm cylinder stubs Show less (-) |
