Alpha Numeric Index Grid ( Cu, Ni, Au…)

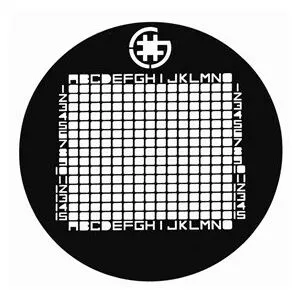

By employing a rectangular mesh the support value of the grid has been increased, offering a value intermediate between the most commonly used grid (200 Lines/”) and (300 Lines/”/). Each grid rectangle is asymmetrical having different outlines in all four corners. This allows for the orientation of the grid to be determined at microscopic levels. The index feature enables the position of each grid to be identified with reference to the letters A-O along the horizontal axis and the numbers 1-15 along the vertical axis. The logo in the rim allows for precise orientation and aids in the identification of each side. Grids are available in Copper, Copper/Palladium, Nickel, and Gold.

REF: DG200F4 Catégorie : , , Étiquette :

Options disponibles :

Description

By employing a rectangular mesh the support value of the grid has been increased, offering a value intermediate between the most commonly used grid (200 Lines/”) and (300 Lines/”/). Each grid rectangle is asymmetrical having different outlines in all four corners. This allows for the orientation of the grid to be determined at microscopic levels. The index feature enables the position of each grid to be identified with reference to the letters A-O along the horizontal axis and the numbers 1-15 along the vertical axis. The logo in the rim allows for precise orientation and aids in the identification of each side. Grids are available in Copper, Copper/Palladium, Nickel, and Gold.

Spécifications :

Horizontal Axis Vertical Axis
Mesh 200 Lines/” 250 Lines/”
Pitch 125 microns 105 microns
Bar Width 20 microns 15 microns
Hole Width 105 microns 90 microns
Overall Diameter 3.05 mm 3.05 mm



Corner outline with reference to logo in the RIM :

Top Right Right Angle
Top Left Inverted Quadrant
Bottom Right Diagonal
Bottom Left Quadrant



DG200F4-Cu Alpha/Numeric  Index Grid, Copper 100/vial
DG200F4-CP Alpha/Numeric  Index Grid, Copper/Palladium 100/vial
DG200F4-Ni Alpha/Numeric  Index Grid, Nickel 100/vial
DG200F4-Au Alpha/Numeric  Index Grid, Gold 50/vial
