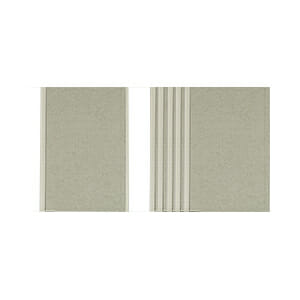

Conductive double sided carbon sheets, 54 x 125mm


REF: D15-000599 Catégorie : , , Étiquettes : ,


Made from the same material as the high purity carbon tabs and tapes, the conductive double sided adhesive carbon sheets are ideal for cutting to size as required. This products is mainly devised for SEM / EDS applications. The material exhibits low outgassing and allows larger areas covering to adhere samples. Sheet size is 54 x 125mm with a thickness of 0.15mm; sold in packs of 10 sheets.

The high purity double sided conductive adhesive carbon tabs and tapes are especially developed for SEM / EDS applications. The material used for both the tabs and tapes is fully transparent for EDS with only trace amounts of Al and Si. The material is constructed using a non-woven liner coated on both sides with a conductive, carbon filled pressure sensitive acrylic adhesive. Total thickness of the material is approximately 150µm with an adhesive thickness of 45µm on both sides. The adhesive used has a high adhesion strength to metals, plastics, ceramics, wafers, rubber, wood, glass, paper, and small particles or fibers. The conductivity of the carbon tapes and tabs is lower than the conductivity of double sided copper tape or the double sided conductive Lift-N-Press tabs, but it is still fully compatible with SEM/EDS applications.
