EM-Tec CT9 high purity conductive double sided adhesive carbon tabs, Ø9mm

Description

The high purity double sided conductive adhesive carbon tabs and tapes are especially developed for SEM / EDS applications. The material used for both the tabs and tapes is fully transparent for EDS with only trace amounts of Al and Si. The material is constructed using a non-woven liner coated on both sides with a conductive, carbon filled pressure sensitive acrylic adhesive. Total thickness of the material is approximately 150µm with an adhesive thickness of 45µm on both sides. The adhesive used has a high adhesion strength to metals, plastics, ceramics, wafers, rubber, wood, glass, paper, and small particles or fibers. The conductivity of the carbon tapes and tabs is lower than the conductivity of double sided copper tape or the double sided conductive Lift-N-Press tabs, but it is still fully compatible with SEM/EDS applications.

Features and benefits of the double sided carbon tabs and tapes are:
– Thin material; 150µm total with 45µm on each side of a 35µm non-woven carrier
– Plastic liner on both sides
– Use temperature range -20°C to + 60°C
– Low outgassing rates
– Fully EDS transparent high purity for EDS applications
– High strength thin adhesive (2×45µm) combined with high tack
– Long shelf life and can be stored in a refrigerator
– Resistance 50K-200K

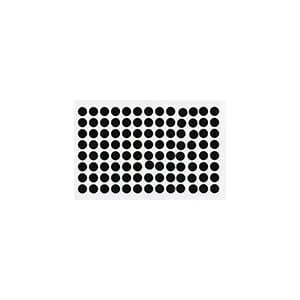

The EM-Tec high purity conductive double sided adhesive carbon tabs are supplied on a clear plastic sheet with a white plastic liner tab. Available as Ø6mm, Ø9mm Ø12mm and Ø25mm carbon tabs.
To use: lift the tab of the clear backing sheet, press the sticky surface to the mount, then peel away the white liner tab, leaving the adhesive exposed. Mount sample on the exposed adhesive. Alternatively, the white liner tab can be removed, the stub pressed on the exposed carbon tab and the clear plastic lifted off. The use of sharp pointed tweezers helps to lift of the tabs and liner. The carbon tabs can be easily removed with isopropanol, ethyl acetate, ethanol or acetone.
The Ø6mm carbon tabs are intended for smaller samples or when smaller tabs are required
The Ø9mm carbon tabs are compatible with Ø9.5mm JEOL stubs
The Ø12mm carbon tabs are compatible with Ø12.7mm pin stubs, Ø12.2mm JEOL stubs and Ø15mm Hitachi stubs.
The Ø25mm carbon tabs are compatible with Ø25.4mm pin stubs, Ø25mm JEOL stubs and Ø25mm Hitachi stubs.
