EM-Tec FS22 FIB grid and sample holder for up to 2×2 FIB grids and 2x Ø12.7mm pin stub, M4

each

Description

The EM-Tec FIB grid holders are designed to hold FIB grids and provide easy access to the posts on the FIB grids to attach the milled FIB lift-out lamellae. The FIB grid holders can be used in the FIB/SEM systems but also for safe storage of the FIB grids with attached lamellae. The EM-Tec FIB grid and sample holders are compact holders which hold the FIB grids directly aside a standard SEM pin stub with a sample. The lift-out lamellas only need to be moved over a short distance to attach them to the FIB grids. The EM-Tec FIB grid holders are all precision machined from vacuum grade aluminium.

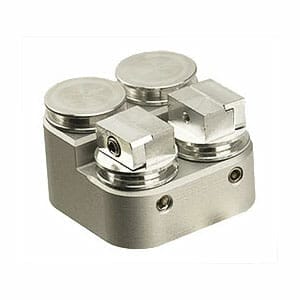

EM-Tec FS22 combines two F12 FIB grid holders with two standard 12.7mm (1/2inch) pin stubs within a 27x27mm footprint. Both the F12 FIB grid holders and the pin stubs can be rotated independently in the holder for selecting the optimum orientation in the FIB/SEM system. The EM-Tec FS22 dual FIB grid and sample holder enables loading the samples and FIB grids close together. The FIB grid and the sample stubs are at the same level when using Si wafer samples. Includes 2x EM-Tec F12 and 2x standard 12.7mm pin stubs.
