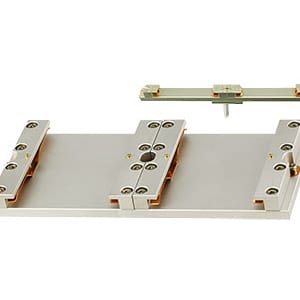

EM-Tec RG4 quad geological thin sections top reference holder for 4 petrographic slides up to 48x28mm, pin

Description

The EM-Tec geological thin section or petrographic slide holders are especially designed to securely hold geological thin sections on petrographic slides for imaging and analysis with an SEM, EPMA or specially configured mineral analyzers. They are used for SEM/EDS imaging and analysis in geology, mineralogy and petrography. The EM-Tec thin section holders are compatible with petrographic slides sizes of 28x48mm, 27x46mm, 26x46mm and 25x45mm. We currently offer two types of geological thin section holders: – Geological thin section holders and slide holders with S-Clips – Reference type geological thin section holders with a reference edge Reference type geological thin section holders with a top reference edge In the reference type holder for the petrographic slides, the slides are pushed against a top reference edge to get a defined height. These holders are intended for SEM/EDS, SEM/WDS and even EPMA work. They are compatible with petrographic slides from 45x30mm to 48x28mm. The petrographic slides need to be loaded from the side and are pushed against the reference edge with a spring; they are held by spring tension. The opening of the holder is 40mm wide. There are two types of Reference holders for geological thin sections on petrographic slides: – EM-Tec RG2 twin petrographic slide top reference holder for two up to 48x28mm slides – EM-Tec RG4 four petrographic slide top reference holder for four up to 48x28mm slides All EM-Tec petrographic slide section holders are available with a standard 3.2mm pin, with an M4 threaded hole or with a Ø14mm stub for JEOL SEM stage adapters with a 14mm connection.
