EM-Tec VS12 compact single action spring-loaded vise holder for up to 12mm, pin

each

Description

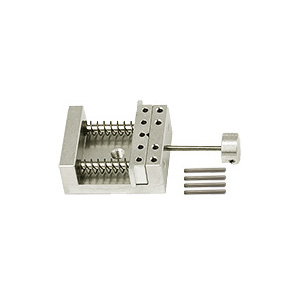

e EM-Tec VS12 single action spring-loaded vise clamp includes one removable push rods and four dowel pins which fit into the top of the jaws. The maximum clamping capacity between the vise jaws is 12mm. Available with either the standard 3.2mm pin or an M4 threaded hole for mounting on the SEM sample stage.

Operation

Consider wearing gloves to avoid contamination. To open the EM-Tec VS12 compact dual action spring-loaded vise clamp, insert the push rod jaw through the small hole on the side. Pushing on the push rod opens the jaws; place the sample between the vise jaws and gently release the push rod. The tension on the 2 springs will hold the sample between the moving and the fixed jaw. The sample can sit off center in this holder. The EM-Tec VS12 spring-loaded vise has been designed to operate with one hand and loading the sample with the other hand. For awkwardly shaped samples, 4 dowel pins can be inserted in the top of the vise jaws and the sample can be clamped between the 4 dowel pins. If the pins are not needed, remove them from the jaws. For samples which are thinner than 1mm, an alternative vise type holder with a screw should be considered. The spring tension is weaker when the jaws are (nearly) closed. For delicate samples, consider lining the jaws with conductive soft material.

Maintenance

The EM-Tec VS12 single action spring-loaded vise clamp is maintenance free. Do not use oil or grease on the guide rods or the push rods; this will cause contamination in the SEM. Do not allow debris to enter the holes for the guide rods of the sliding vise jaw.
