Fluorescence Adapter for Keyence VHX Series Digital Microscope

The NIGHTSEA Model SFA Fluorescence Adapter system adds a versatile fluorescence imaging capability to the Keyence VHX series of digital microscopes. The system is being used successfully by a growing number of Keyence owners for a variety of applications. Visit our gallery of images made with the NIGHTSEA adapter and the Keyence microscope.

REF: SFA-KZ Categories: , Brand:

Options disponibles :

Description

Ordering Information

SFA-KZ2-IND Best Value Full System Kit
Includes three wavelengths (UV + VI + RB), supports ZST, Z100, Z50, Z20, Z00
SFA-KZST-IND ZST Full System Kit
Includes three wavelengths (UV + VI + RB), supports ZST and Z100
SFA-KZB-IND Basic Full System Kit
Includes three wavelengths (UV + VI + RB), supports Z00, Z20, Z50 only
SFA-KZ100-IND Z100 Full System Kit
Includes three wavelengths (UV + VI + RB), supports Z100 only
SFA-KZ1B-IND Z1B Full System Kit
Includes three wavelengths (UV + VI + RB), supports Z00, Z20, Z50, and Z100
(SFA-KZB-IND and SFA-KZ100-IND combined)



Fluorescence solutions for most Keyence lenses

Keyence offers a variety of lenses for imaging at different scales. NIGHTSEA offers several variants of our fluorescence adapter system that work with the most commonly used Keyence lenses – the ZST, Z100, Z50, Z20, and Z00.
The key elements of any fluorescence system are:
– a light source that produces sufficient energy in the appropriate wavelength range to excite fluorescence in the sample of interest;
– a barrier filter in the viewing path that blocks reflected excitation light while transmitting the fluorescence emitted by the sample.

NIGHTSEA implements these for the Keyence system with:
– high intensity LED light sources available in five excitation wavelength ranges (see list further down page);
– emission barrier filters that can be added to the Keyence lenses easily and non-invasively.

Fluorescent mineral sample imaged with the Keyence + NIGHTSEA systems Z00, Z20, and Z50 lenses – the barrier filter slips over the bottom of the lens Z100 and ZST lenses – the barrier filter inserts in the Analyzer slot at the top of the lens Keyence VH-ZST lens, fiber optic port with NIGHTSEA adapter and light head NIGHTSEA Light Head Mount for Keyence VH-ZST lens NIGHTSEA focus spot with Keyence VH-ZST lens at high magnification



Here is a sample of what you can see. For many more examples visit our Keyence image gallery.

Cement thin section fluorescence, VH-Z100 lens, Royal Blue excitation, 700x Nylon granule with gel defect, VH-ZST lens, Royal Blue excitation, 100x Electronic component failure analysis, VH-ZST lens, Royal Blue excitation, 500x Epoxy on motor shaft, VH-ZST lens, Ultraviolet excitation, 20x



Comprehensive solution kit
We have configured a versatile Keyence fluorescence adapter kit (part number SFA-K-IND) that includes the most useful excitation wavelengths for varied industry applications, and that adapts to all of the supported Keyence lenses. The SFA-K-IND kit includes the following items, at a package price that is significantly less than purchasing the items separately:

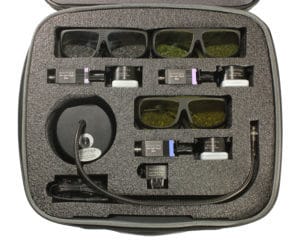

Custom case for 3-color system for Keyence

– Three excitation light heads – Ultraviolet (UV), Violet (VI), and Royal Blue (RB) . This recommendation is based on our experience with varied applications. Read the explanation below.
– Two sets of three barrier filters – one set for the ZST and Z100 lenses, one set for the Z00, Z20, and Z50
– Matching barrier filter glasses for each excitation wavelength
– Accessory hardware for mounting the NIGHTSEA light head over the ZST fiber optic input port (enhanced performance at high magnification)
– Gooseneck lamp base with dimming control
– Universal power supply – 120/240VAC, 50/60Hz, with international plug set
– Packing/carrying case with custom-cut foam

We do offer additional wavelength sets that may be of use for other applications.

Why we recommend a set of three excitation wavelengths for industry needs

We have found that the combination of the Ultraviolet, Violet, and Royal Blue excitation/emission sets addresses a wide variety of industrial imaging challenges. The most common misconception we encounter is that fluorescence is uniquely associated with ultraviolet (UV) light and many customers immediately ask for that wavelength. However we have found in several cases – even some in which UV was specifically recommended by a dye manufacturer – that either Violet or Royal Blue provided superior performance. For example:

– A prospective customer wanted to image concrete thin sections impregnated with fluorescent dye. The dye supplier recommended UV, and it is true that UV will make the dye fluoresce nicely. We found that our Royal Blue excitation produced significantly brighter fluorescence.

– Similar to above, except that a fluorescence epoxy had been used to highlight surface cracks in a test sample. Royal Blue excitation yielded brighter fluorescence.

– A prospective customer sent us a sample of material that was known to fluoresce under UV. The goal was to see the distribution of non-fluorescent particles in a fluorescent matrix. While both UV and Royal Blue excited fluorescence in the sample, the best imaging contrast was achieved with Violet excitation.

– We achieve enhanced performance with the ZST lens by mounting the light head on the lens’s fiber optic port, but that path does not transmit UV well. In many cases, for example to inspect conformal coating, Violet is an excellent alternative to UV.
Acquiring the three-color system will provide the highest chance of success and will equip you with a versatile toolkit to address new fluorescence imaging challenges as they arise. Contact us If you would like to discuss your application further.

Performance expectations

The microscopes in the Keyence VHX series were not designed for fluorescence. That said, the NIGHTSEA adapter system adds a fluorescence capability that is proving to be valuable for a growing number of users. Several companies have purchased multiple adapters so that they could replicate the performance across multiple microscopes. In at least one case the customer only purchased their Keyence system because of the added NIGHTSEA fluorescence capability that enabled a critical analysis function for them.
Read more about performance expectations with the NIGHTSEA adapters on the Keyence microscopes.

Wavelength sets

There are five excitation/emission wavelength combinations available for the system.

Color Designation Excitation Emission
Ultraviolet UV 360 – 380nm 415nm longpass
Violet VI 400 – 415nm 450nm longpass
Royal Blue RB 440 – 460nm 500nm longpass
Cyan CY 490 – 515nm 550nm longpass
Green GR 510 – 540nm 600nm longpass

Enhanced performance with the VH-ZST

With the ZST lens and the higher magnification (200 – 2000x) objective you can achieve enhanced performance by removing the Keyence fiber optic illuminator and positioning the NIGHTSEA excitation light head in its place with our custom adapter. This brings the excitation energy through the lens, creating a much more concentrated illumination spot than can be achieved with the light source positioned to the side. We have made fluorescence images at up to 2000x with this configuration.

Focused fluorescence excitation spot with VH-ZST high magnification objective Fluorescent mineral (willemite) at 20 and 1000x, VH-ZST lens, Royal Blue excitation Electronic component failure analysis, VH-ZST lens, Royal Blue excitation, 2000x



Read more about achieving the best fluorescence results with the ZST lens.
