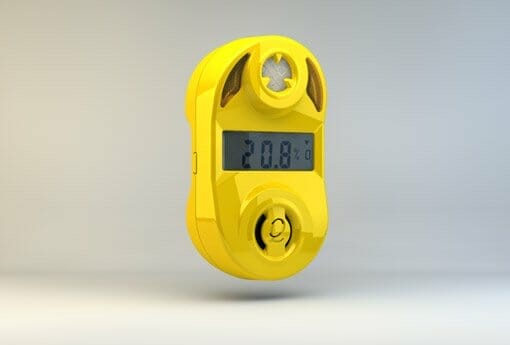

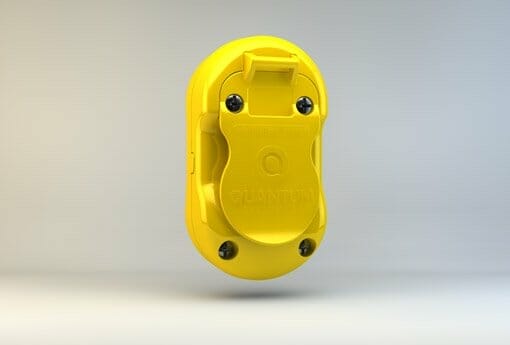

GasPod O2 (Personal Oxygen Monitor)

3 year sensor/battery

A personal, compact and extremely robust personal oxygen monitor, with three year long life sensor and large clear LCD display, for continuous monitoring of oxygen concentrations in surrounding air. The GasPod offers dual protection for the user from the potential hazard of oxygen deficiency in the presence of nitrogen, argon and helium together with monitoring of oxygen enrichment.

REF: GasPod O2 Categories: ,

Description

Key Features

Confidence heartbeat & service indication on LCD display with large clear indication for maximum user visibility.

Simple automated push button calibration in fresh air.

Different audible, visual and vibration indications for two primary warning alarms and two critical alarm settings.

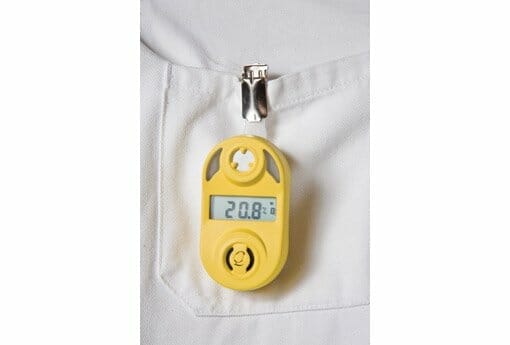

? Rugged highly visible enclosure and durable clip to allow user to attach the GasPod securely to garments.

Loud audibl alarm for maximum volume.

No requirement for charging. Three year sensor/battery pack which cannot be switched off protecting the user at all times.

? Live readings with no sample interval for rapid alarm response times.

? Oxygen concentration reading suppressed in alarm condition to avoid user interpretation of safe levels (continuous reading available upon request).

 Technical Specification
Dimensions H80 x W45 x D33 mm
Weight (excl cable) 200gm approx
Alarm Indications LCD, Audible Alarm 82 dBA at 10cm, Vibrate at 18%
Read-out LCD display to 0.01
Calibration Test By push button adjustment in fresh air
Alarms High Alarm (22.5%)*, Critical High Alarm (24%)*
Low Alarm (19%)*, Critical Low Alarm (18%)*

* Alarm levels are factory pre-set and may be varied according to industry best practice levels.
