Grids / grilles Rectangular Mesh ( Cu, Ni) 100/400- Gilder

3.05mm diameter, see chart for thickness
Material: Copper (Cu), Copper-Rhodium (Cu-Rh), Nickel (Ni), Gold (Au), Molybdenum (Mo)

REF: DG1040 Categories: , , , Étiquette :

Options disponibles :

Description

A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny 3.05mm diameter, 0.7 mil thickness Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP) side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.

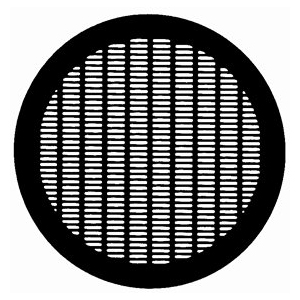

Rectangular
3.05mm diameter, 0.7 mil (18µm) thickness
Material: Copper (Cu), Nickel (Ni)



Type Cat# Packed Pitch (µm) Hole (µm) Bar (µm)
DG75/300 DG7530-Cu 100/vial 340/83 290/58 50/25
DG7530-Ni 100/vial 340/83 290/58 50/25
DG100/400 DG1040-Cu 100/vial 250/62 205/37 45/25
DG1040-Ni 100/vial 250/62 205/37 45/25



La liste est non exhaustive.
N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.



Informations complémentaires

Cat#

Cu, Ni
