Silicon Nitride 10 nm thick TEM Windows ( 9 Windows)

REF: SN100-A10Q33 Categories: , ,


5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS



Silicon Nitride (SiN) TEM Windows
Low-Stress Silicon Nitride
– 100 micron thick frame, fits 3 mm sample holders
– 10 nm thick Silicon Nitride film

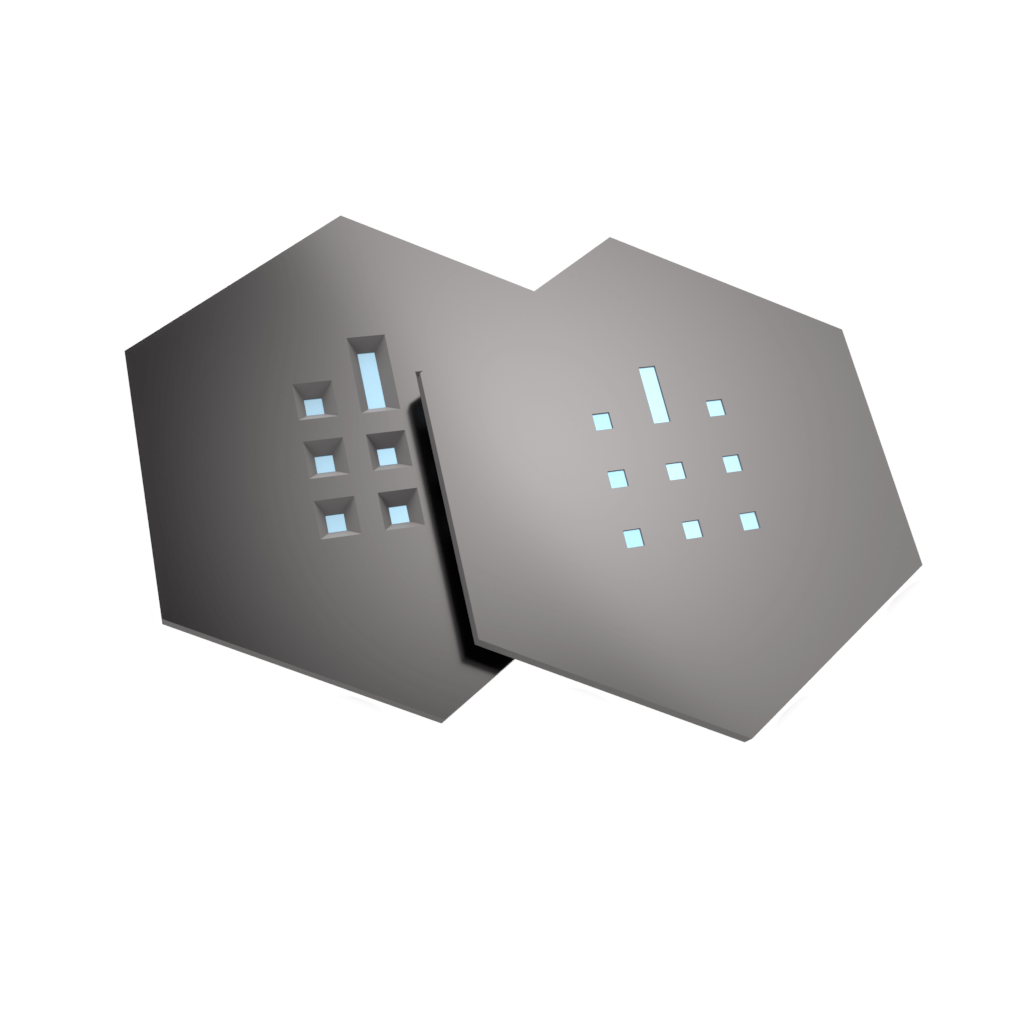

– NEW Dimensions: (8) 100 x 100 micron windows, (1) 100 x 350 micron window
– Non-Porous

What’s NEW?
Nine window grids are now offered in an asymmetric format. To aid in identifying the same position when switching between light and electron microscopy, the bottom middle window is an elongated rectangle instead of a square.
We have re-engineered our TEM grids so that they are easier to handle. By making the grids slightly narrower users now have easy access to grids in TEM holders. No more fumbling with tweezers while trying to pick up or put down grids. The new TEMWindow grid shape is still compatible with all standard holders.

100% Satisfaction Guaranteed

View the TEMwindows Silicon_Nitride brochure

TEM Windows handling Instructions

Explore how the Technical Properties of SiMPore’s Silicon Nitride films compare to other thin films

For examples of how these Silicon Nitride TEM windows can be used, please see Featuread Publications

– Competitively Priced: state of the art manufacturing processes and an expert engineering team allow us to offer Silicon Nitride solutions at competitive prices
– Plasma Cleanable: Silicon nitride grids can be vigorously plasma cleaned to remove organic contamination, unlike carbon grids
– Increased Uniformity: reduced field-to-field variability
– Tolerates temperatures >1000C: supports use in environmental TEMs where dynamic processes are observed at high temperatures
– Withstands harsh deposition & chemical conditions: provides an ideal balance of imaging resolution and mechanical strength
– Incorporates LPCVD, low-stress (~250MPa), non-stoichiometric silicon nitride: provides flat, insulating and hydrophobic surfaces
