SILICON NITRIDE TEM WINDOW GRIDS
5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS

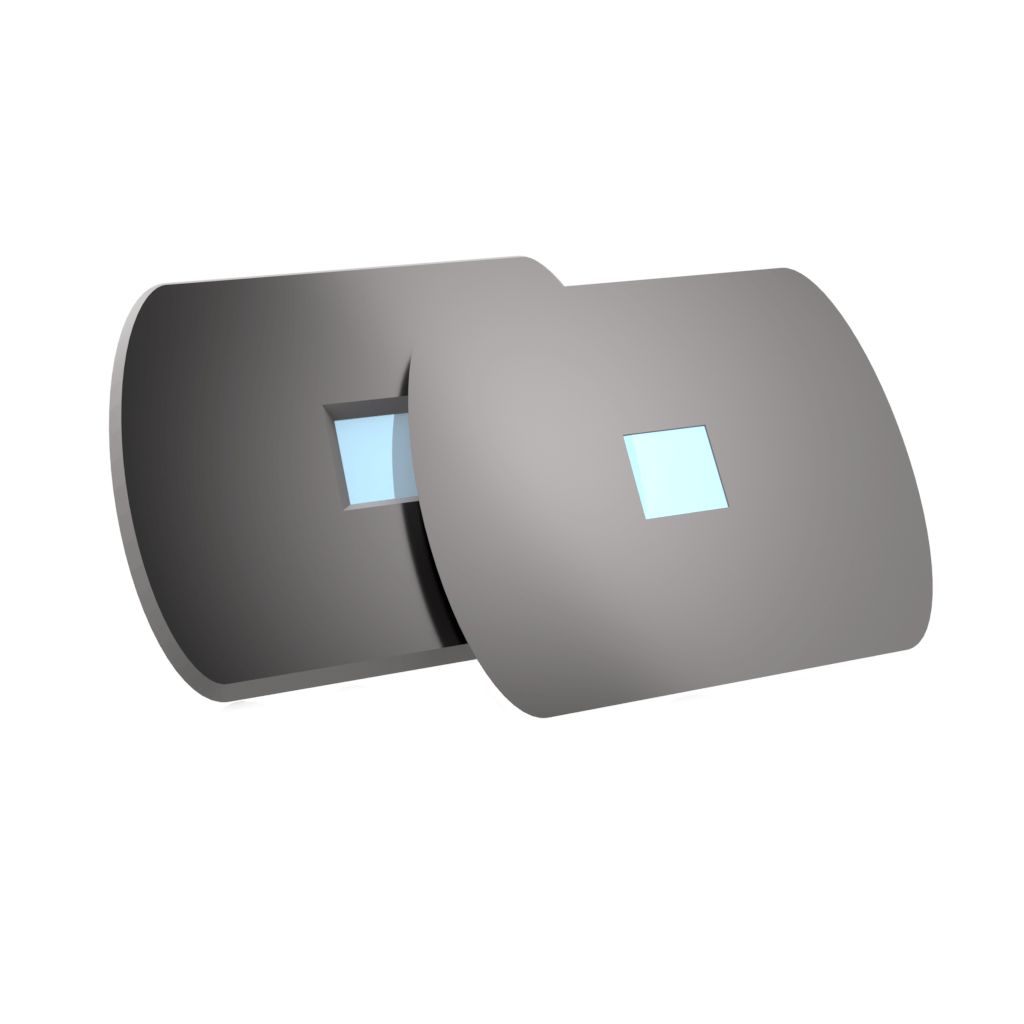

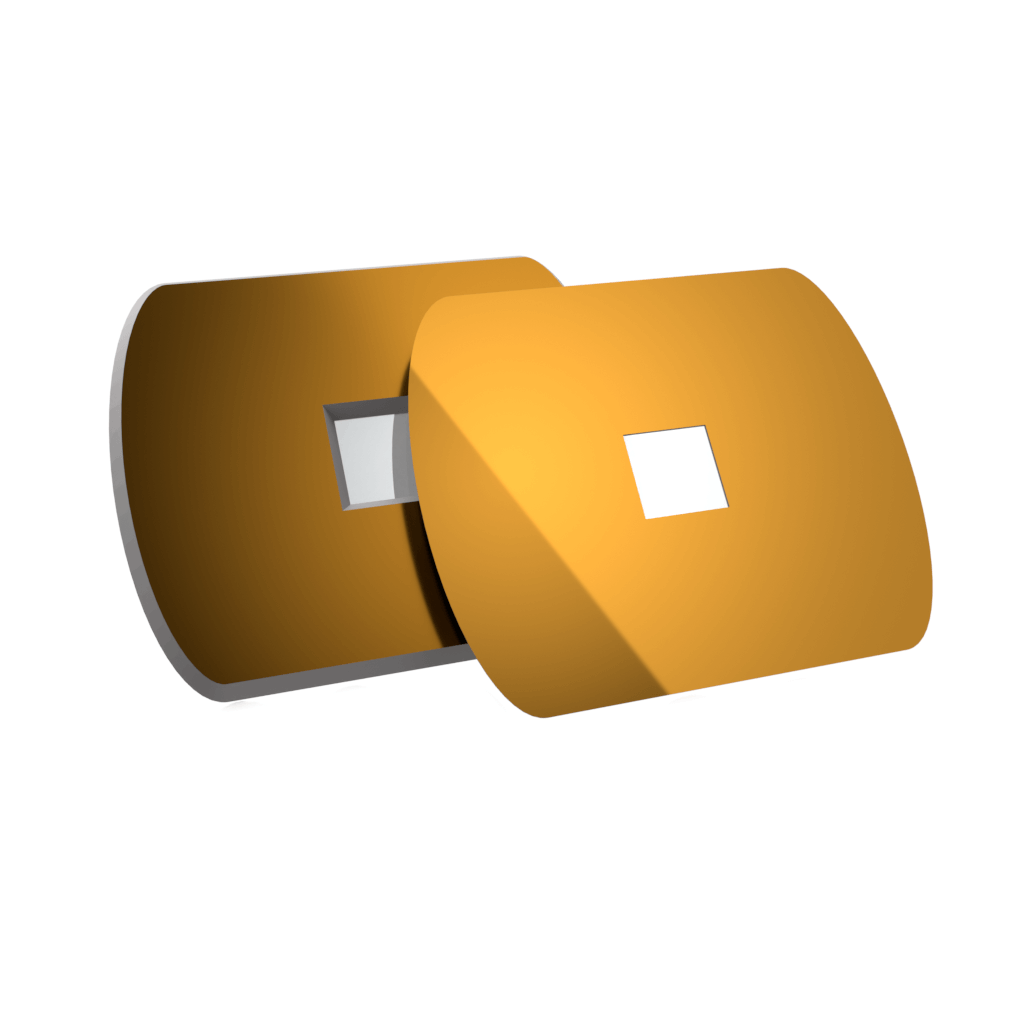

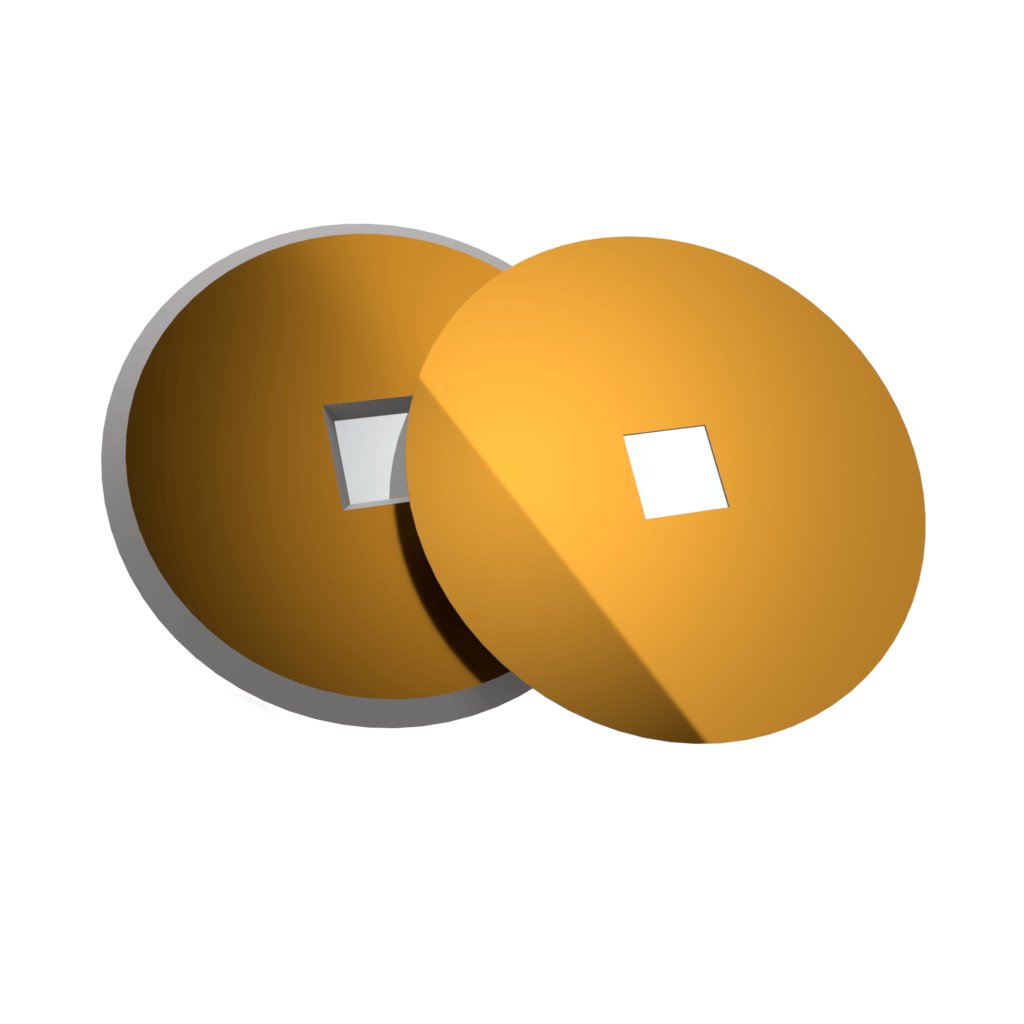

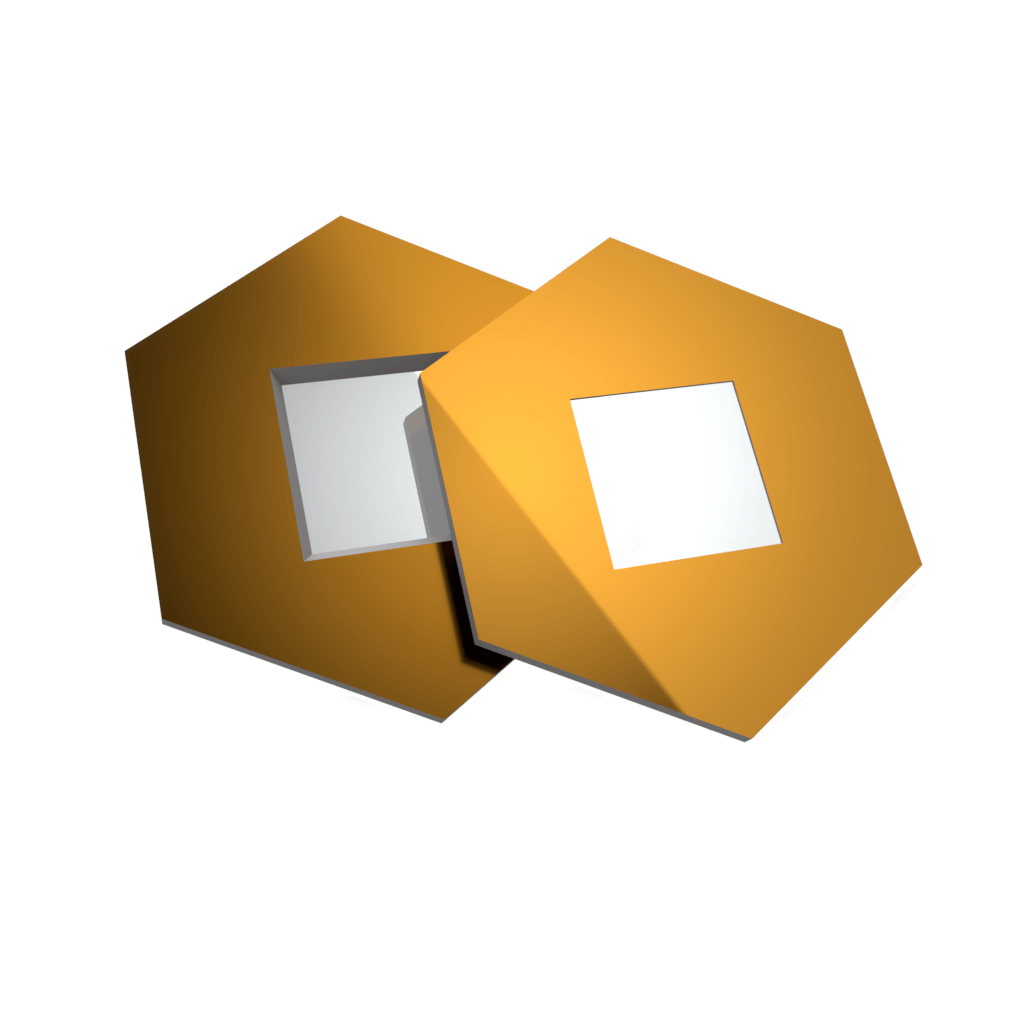

Silicon Nitride (SiN) TEM Windows
Low-Stress Silicon Nitride
– 100 micron thick frame, fits 3 mm sample holders
– 5 nm thick Silicon Nitride film

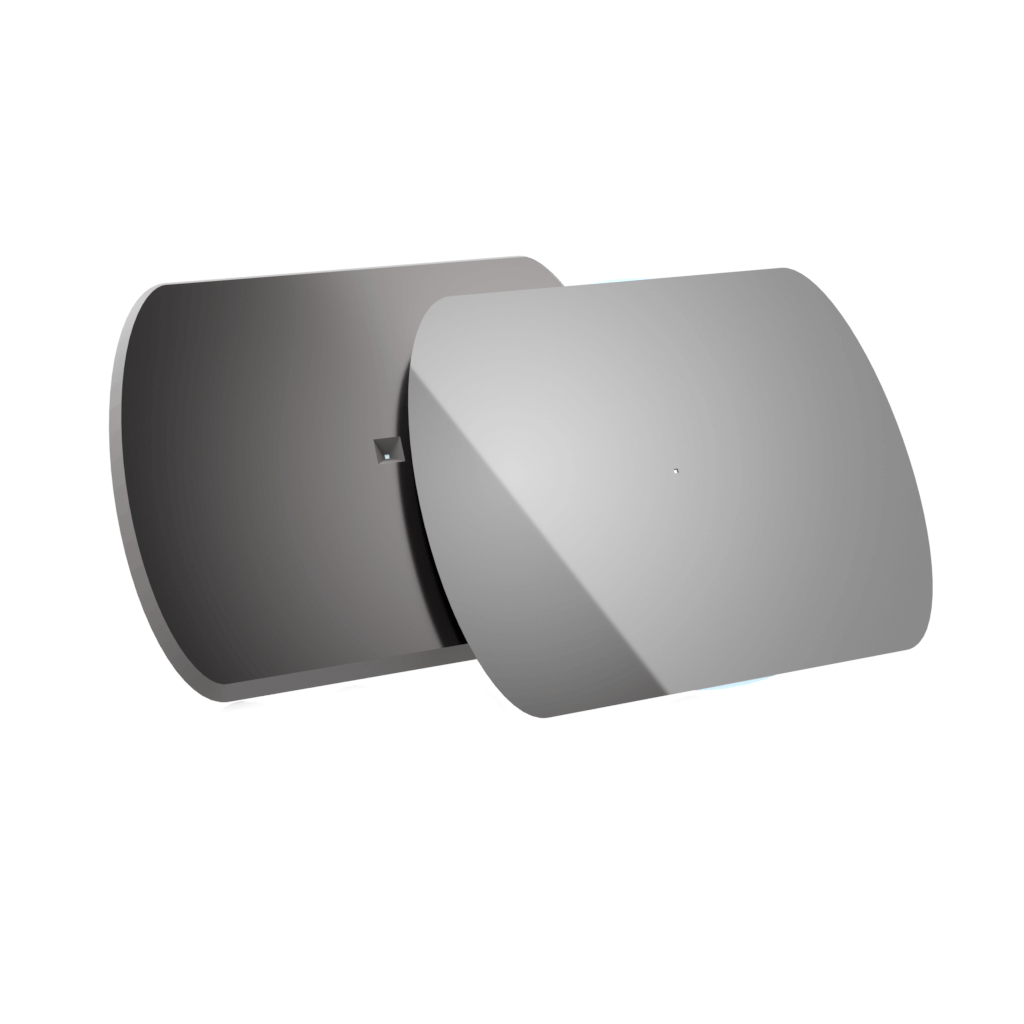

– (1) 25 x 25 micron window
We are offering a grid with a single window – just 25 microns (+/- 5 microns). This is used in a number of unique applications such as single pore DNA sequencing where an ion beam is used to drill a hole in the membrane.
Smaller single window grids (down to 10 microns) can be fabricated through our custom program. Please contact us for more information.
Note: It has been reported that the 5 nm silicon nitride windows may have slight wrinkling (significantly less than silicon dioxide or pure silicon). This does not affect TEM imaging.
100% Satisfaction Guaranteed
View the TEMwindows Silicon_Nitride brochure
TEM Windows handling Instructions
Explore how the Technical Properties of SiMPore’s Silicon Nitride films compare to other thin films
For examples of how these Silicon Nitride TEM windows can be used, please see Featuread Publications
– Competitively Priced: state of the art manufacturing processes and an expert engineering team allow us to offer Silicon Nitride solutions at competitive prices
– Plasma Cleanable: Silicon nitride grids can be vigorously plasma cleaned to remove organic contamination, unlike carbon grids
– Increased Uniformity: reduced field-to-field variability
– Tolerates temperatures >1000C: supports use in environmental TEMs where dynamic processes are observed at high temperatures
– Withstands harsh deposition & chemical conditions: provides an ideal balance of imaging resolution and mechanical strength
– Incorporates LPCVD, low-stress (~250MPa), non-stoichiometric silicon nitride: provides flat, insulating and hydrophobic surfaces
