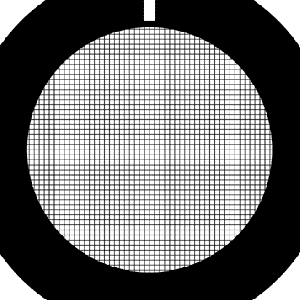

Thin Bar Grids / grilles 600 Mesh ( Cu, Ni) – Revolutionary Specimen Support Grids -Square Mesh – Gilder

3.05mm diameter, see chart for thickness
Material: Copper (Cu), Copper-Rhodium (Cu-Rh), Nickel (Ni), Gold (Au), Molybdenum (Mo)

REF: DT601 Catégorie : , , , Étiquette :

Options disponibles :

Description

A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny 3.05mm diameter, 0.7 mil thickness Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP) side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.



New Revolutionary Specimen Support Grids
In addition to our square and hexagonal mesh Gilder Thin Bar Grids, we are now able to produce a very fine mesh that values up to 2,000 lines/inch. There is an increasing need in TEM for support thin films, routinely carbon, as thin as 1.5 – 2.0nm. The pitch (the distance from the center of one bar to the center of the next bar) dimension in all grids remains constant, which allows them to be used as a lower magnification calibration aid.
Type T601H(hexagonal) and T601(square) represent our efforts to reduce the grid bar width (only 5 microns) enabling more of the specimen to be viewed. All new types, apart from one side being shiny, the other matte, have a large asymmetrical mark in the rim which gives the identification of which side the specimen is on. Grids are 3.05mm overall diameter; 2.05mm mesh area diameter.

3.05 diameter, 0.8 mil thickness
Material: Copper(Cu), Nickel(Ni), Gold(Au)



Type Cat# Packed Pitch (µm) Hole (µm) Bar (µm)
600 mesh

Square

DT601-Cu 100/vial 42 37 5
DT601-Ni 100/vial 42 37 5
600 mesh

Hexagonal

DT601H-Cu 100/vial 42 37 5
DT601H-Ni 100/vial 42 37 5
1500 mesh

Square

DT1500-Cu 15/vial 16.5 11.5 5
DT1500-Ni 15/vial 16.5 11.5 5
2000 mesh

Square

DT2000-Cu 10/vial 12.5 7.5 5
DT2000-NI 10/vial 15.5 7.5 5

N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.
