69 résultats affichés
Filtres
Trier les résultats
Rafraîchir
Appliquer
 |
The Chessy test specimen comprises more than 1.6 million gold squares on silicon which… Show more (+) The Chessy test specimen comprises more than 1.6 million gold squares on silicon which form a four-fold chequerboard pattern in an area of 5mm square. Overall Size of specimen is 10 mm x 10 mmeach Show less (-) |
 |
|
 |
L'échantillon de test KPFM & EFM a été spécialement conçu pour tester les performances de… Show more (+) L'échantillon de test KPFM & EFM a été spécialement conçu pour tester les performances de la microscopie à force à sonde Kelvin et de la microscopie à force électrostatique. Cet échantillon de test pratique est constitué de réseaux avec des lignes alternées d'aluminium et d'or déposées sur un substrat de silicium recouvert d'oxyde de silicium Show less (-) |
 |
Gold on carbon resolution test standard with gold particles on a carbon substrate. The gold… Show more (+) Gold on carbon resolution test standard with gold particles on a carbon substrate. The gold particles size ranges from 5-200nm. The carbon substrate is 6mm diameter with 2mm height. Gold provides excellent SE signal whereas the dark carbon background separates the individual gold particles. Feature rich gold particles are ideal for resolution testing on standard SEMs. Use with a magnification of 15,000x or higher. Ideally suited to correct distortion, astigmatism and image shift and to adjust for correct focus, beam size, contrast and brightness. This resolution standard has a square mesh grid pattern to facilitate locating and positioning.
Available unmounted or mounted on the most popular SEM stubs. If you work with multiple SEM platforms, look at our SEM stub adapter page. The SEM stub adapters enable you to use a single resolution standard on all SEMs. Show less (-) |
 |
Gold on carbon resolution test standard with larger gold particles on a carbon substrate. The… Show more (+) Gold on carbon resolution test standard with larger gold particles on a carbon substrate. The gold particles size ranges from 30-300nm. The carbon substrate is 6mm diameter with 2mm height. The larger gold particles provide excellent SE signal whereas the dark carbon background separates the individual gold particles. The feature rich larger gold particles are ideal for low kV and medium maginfication range. Use with a magnification of 10,000x or higher. Ideally suited to correct distortion, astigmatism and image shift and to adjust for correct focus, beam size, contrast and brightness. This resolution standard has a square mesh grid pattern to facilitate locating and positioning.
Available unmounted or mounted on the most popular SEM stubs. If you work with multiple SEM platforms, look at our SEM stub adapter page. The SEM stub adapters enable you to use a single resolution standard on all SEMs. Show less (-) |
 |
Gold on carbon resolution test standard with fine gold particles on a carbon substrate. The… Show more (+) Gold on carbon resolution test standard with fine gold particles on a carbon substrate. The gold particles size ranges from 3-50nm. The carbon substrate is 6mm diameter with 2mm height. The fine gold provides excellent SE signal whereas the dark carbon background separates the individual gold particles. The finer gold particles are ideal for high resolution testing on standard SEMs and FESEMs. Use with a magnification of 50,000x or higher. Ideally suited to astigmatism and image shift and to adjust for correct focus, beam size, contrast and brightness for high resolution imaging. This resolution standard has a square mesh grid pattern to facilitate locating and positioning.
Available unmounted or mounted on the most popular SEM stubs. If you work with multiple SEM platforms, look at our SEM stub adapter page. The SEM stub adapters enable you to use a single resolution standard on all SEMs. Show less (-) |
 |
Gold on carbon resolution test standard with finer gold particles on a carbon substrate. The… Show more (+) Gold on carbon resolution test standard with finer gold particles on a carbon substrate. The gold particles size ranges from 2-30nm. The carbon substrate is 6mm diameter with 2mm height. The finer gold provides excellent SE signal whereas the dark carbon background separates the individual gold particles. The finer gold particles are ideal for ultra high resolution testing on FESEMs. Use with a magnification of 100,000x or higher. Ideally suited to correct astigmatism and image shift and to adjust for correct focus, beam size, contrast and brightness for ultra high resolution imaging. This resolution standard has a square mesh grid pattern to facilitate locating and positioning.
Available unmounted or mounted on the most popular SEM stubs. If you work with multiple SEM platforms, look at our SEM stub adapter page. The SEM stub adapters enable you to use a single resolution standard on all SEMs. Show less (-) |
 |
EM-Tec LAMC-15 large area magnification calibration standards ideal for low magnifications, large areas, microscope stages… Show more (+) EM-Tec LAMC-15 large area magnification calibration standards ideal for low magnifications, large areas, microscope stages and digital imaging systems The unique EM-Tec LAMC-15 calibration standard has been designed for large area and low magnification calibration. It is constructed using an ultra-flat conductive silicon substrate with bright chromium deposited lines. Ideal for SEM and reflected […] Show less (-) |
 |
EM-Tec M-1 with a 1µm pitch grid pattern is useful for calibration or image distortion… Show more (+) EM-Tec M-1 with a 1µm pitch grid pattern is useful for calibration or image distortion asessments in the 100x to 10,000x magnification range. Pattern size is 3x3mm with lines directly etched in a conductive ultra-flat silicon substrate. Lines are 300nm deep with a width of 200nm for 1µm lines, 300nm for 10µm lines and 400nm for 100µm lines. Alternatively, small samples can be placed direction on the grid pattern for immediate calibration or integrated calibration in the image. This standard is NIST traceable; example of wafer level certificate of traceability for the Em-Tec M-1 grid pattern calibration standard.
Intended for SEM, FESEM, FIB, Auger, SIMS and reflected light microscopy Show less (-) |
 |

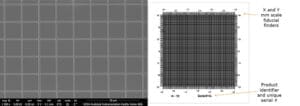

EM-Tec M-10 with a 10µm pitch grid pattern is useful for calibration or image distortion… Show more (+) EM-Tec M-10 with a 10µm pitch grid pattern is useful for calibration or image distortion assessments in the 100x to 1000x magnification range. Pattern size is 3x3mm with lines directly etched in a conductive ultra-flat silicon substrate. Lines are 300nm deep with a width of 300nm for 10µm lines and 400nm for 100µm lines. Alternatively, small samples can be placed direction on the grid pattern for immediate calibration or integrated calibration in the image. This standard is NIST traceable; example of wafer level certificate of traceability for the Em-Tec M-10 grid pattern calibration standard.
Intended for SEM, table top SEM, FIB, Auger, SIMS and reflected light microscopy. Show less (-) |
