Description

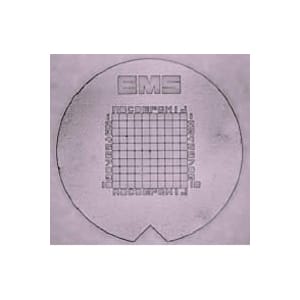

Asbestos Analysis Index Grids
Our unique index grids for all of your microscopy work. These grids are manufactured in the strictest accordance to meet AHERA requirements.
The grids are available in either copper or nickel and there are 100 grids/vial.
Specifications:
| Mesh | 200 Line/” |
| Pitch | 125 microns |
| Bar Width | 10 microns +/- 2 microns |
| Hole Width | 115 microns +/- 2 microns |
| Overall Diameter | 3.05mm |
| Index Identification | Horizontal: A-J , Vertical: 1-10 |
| EMS logo in RIM | |
| Asymmetrical
Cut out in RIM |
allows for precise repeat location and aids in side diffetentiation |
| DG200EMSIND-Cu | Asbestos Analysis Index Grids, copper | 100/vial |
| DG200EMSIND-Ni | Asbestos Analysis Index Grids, Nickel | 100/vial |
