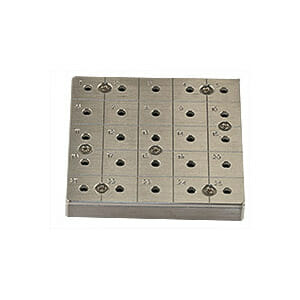

EM-Tec CS25/4 C-Square multi pin stub holder for 25x Ø12.7mm or 4x or 9x Ø25.4mm pin stubs, M4

each

Description

The EM-Tec C-Square multi pin stub holders are primarily designed to hold multiple Ø12.7mm and/or Ø25.4mm pin stubs with the standard 3.2mm pin diameter. Larger or smaller pin stubs can also be used on the EM-Tec C-Square multi pin stub holders. They offer optimum X-Y coverage of the SEM stage and allow for easy alignment with the square sides and additionally engraved lines in X-Y directions. To facilitate quick and easy loading and exchange of the pin stubs, proprietary conductive gripping O-rings hold the pin stubs in place and provide a conductive path at the same time. The EM-Tec C-Square multi pin stub holders are available in 7 different sizes:
– EM-Tec CS9/4 C-Square multi pin stub holder for 9x Ø12.7mm or 4 x Ø25.4mm pin stubs
– EM-Tec CS16/4 C-Square multi pin stub holder for 16x Ø12.7mm or 4 x Ø25.4mm pin stubs
– EM-Tec CS18/6 C-Square multi pin stub holder for 18x Ø12.7mm or 6 x Ø25.4mm pin stubs
– EM-Tec CS25/4 C-Square multi pin stub holder for 25x Ø12.7mm or 4 x or 9 x Ø25.4mm pin stubs
– EM-Tec CS36/9 C-Square multi pin stub holder for 36x Ø12.7mm or 9 x Ø25.4mm pin stubs
– EM-Tec CS49/9 C-Square multi pin stub holder for 49x Ø12.7mm or 9 x Ø25.4mm pin stubs
– EM-Tec CS64/16 C-Square multi pin stub holder for 64 x Ø12.7mm or 16 x Ø25.4mm pin stubs

Feature and benefits of the EM-Tec C-Square multi pin stub holders:
– Conductive pin gripping O-rings for quick and easy exchange of stubs
– Compatible with standard pin stubs and short Zeiss pin stubs with 3.2mm pin diameter
– Square holders optimised for X-Y travel directions
– Reference point in the upper right corner
– Easy programmable locations
– Alphanumeric location ID
– Engraved orientation lines to facilitate X-Y alignment
– Fully compatible with all EM-Tec SEM stage adapters

– Ideal for automated SEM/EDX particle analysis and GSR analysis
– Suitable for correlative & corroborative microscopy applications

The EM-Tec C-Square multi pin stub SEM holders are available with:
– standard pin to fit on SEM which use the standard pin; FEI, Philips, Tescan, Phenom, Pemtron, Aspex, RJLee, AmRay,  Cambridge Instruments, Leica, CamScan, ETEC and Novascan SEMs.
– M4 threaded hole compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
– Ø14mm JEOL stub compatible with JEOL and EM-Tec stage adapters with a Ø14mm connection
