Non-Porous Pure Silicon 5nm thick TEM Windows ( 9 small Windows)

REF: US100-A05Q33A Categories: , ,

Description

PURE SILICON TEM WINDOWS
5 nm, 9 nm, 15 nm, and NANOPOROUS

NOTE: US100-P30 replaced US200-P15. P30 Membranes are 3X more porous than P15. P15 is still available by special order.



DESCRIPTION

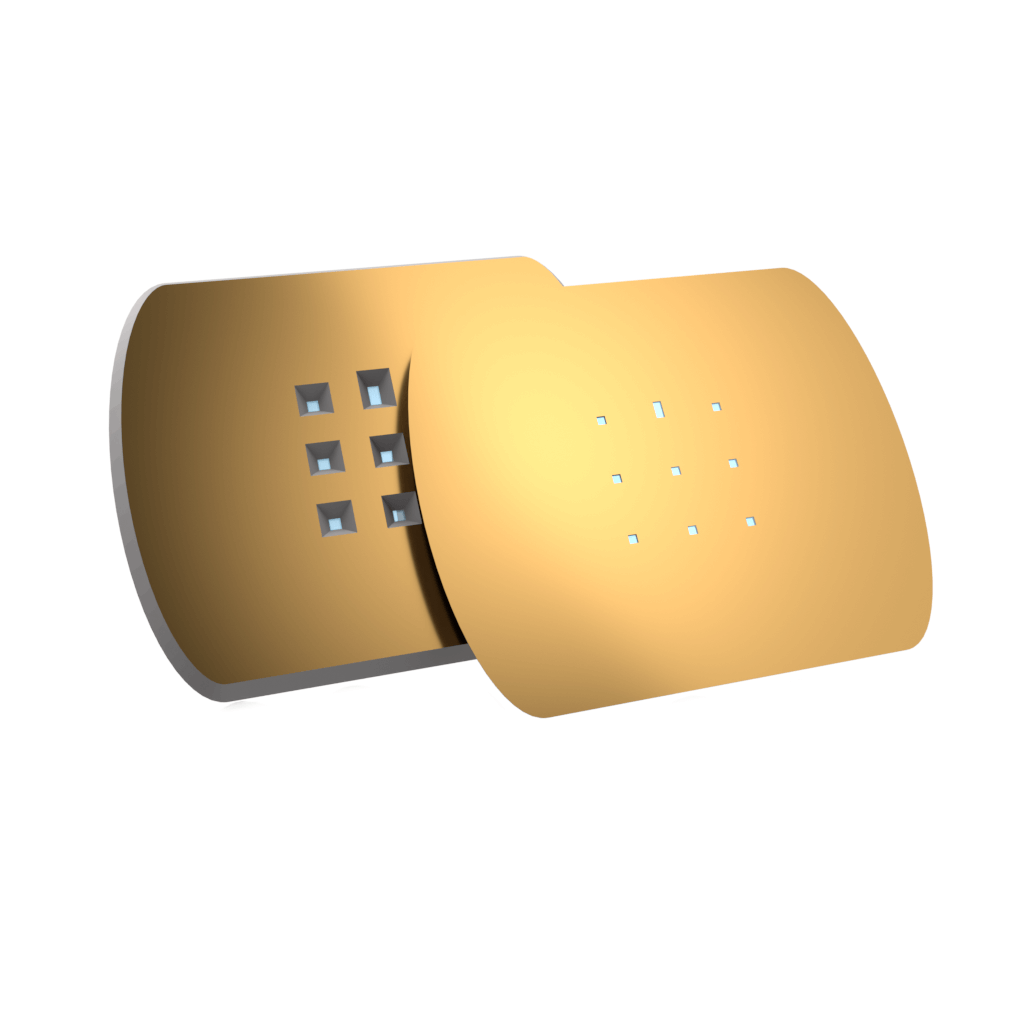

SiMPore’s Non-Porous 5 nm TEM Windows
Amorphous Pure Silicon – (NO WRINKLING)
– 5 nm thick membrane
– 100 micron thick frame, fits 3 mm sample holders
– Dimensions: (8) 50 x 50 micron windows, (1) 50 x 100 micron window

What’s NEW?
We have re-engineered our TEM grids so that they are easier to handle. By making the grids slightly narrower users now have easy access to grids in TEM holders. No more fumbling with tweezers while trying to pick up or put down grids. The new TEMWindow grid shape is still compatible with all standard holders.

100% Satisfaction Guaranteed

Note: Non-Porous films are lightly wrinkled with approximately 5 microns or less deflection across 100 microns of travel. This is typically not problematic for high-resolution Imaging.



TEM Windows handling Instructions

Read more about the unique combination of enabling Features and Benefits of Pure Silicon.
Explore how the Technical Properties Technical Properties  of SiMPore’s Pure Silicon windows compare to other thin films
For examples of how these TEM windows can be used, please see Featured Publications
Nanometer Thinness: Thinner than the thinnest available carbon grids
Plasma Cleanable: Pure Silicon TEM Windows can be vigorously plasma cleaned to remove organic contamination, unlike carbon grids
Increased Uniformity: Reduced field-to-field variability
Increased Stability: At high beam currents and high annealing temperatures (600C for non-porous, >1000C for nanoporous)
Reduced Chromatic Blur: Half the chromatic blur of carbon grids
Nanometer-Scale Pores: Allow stable suspension of nanoscale materials for imaging without background
Silicon Composition: Sputter-deposited, pure, intrinsic silicon
Minimal Background Signal: Enables elemental analyses of samples containing nitrogen and/or carbon
